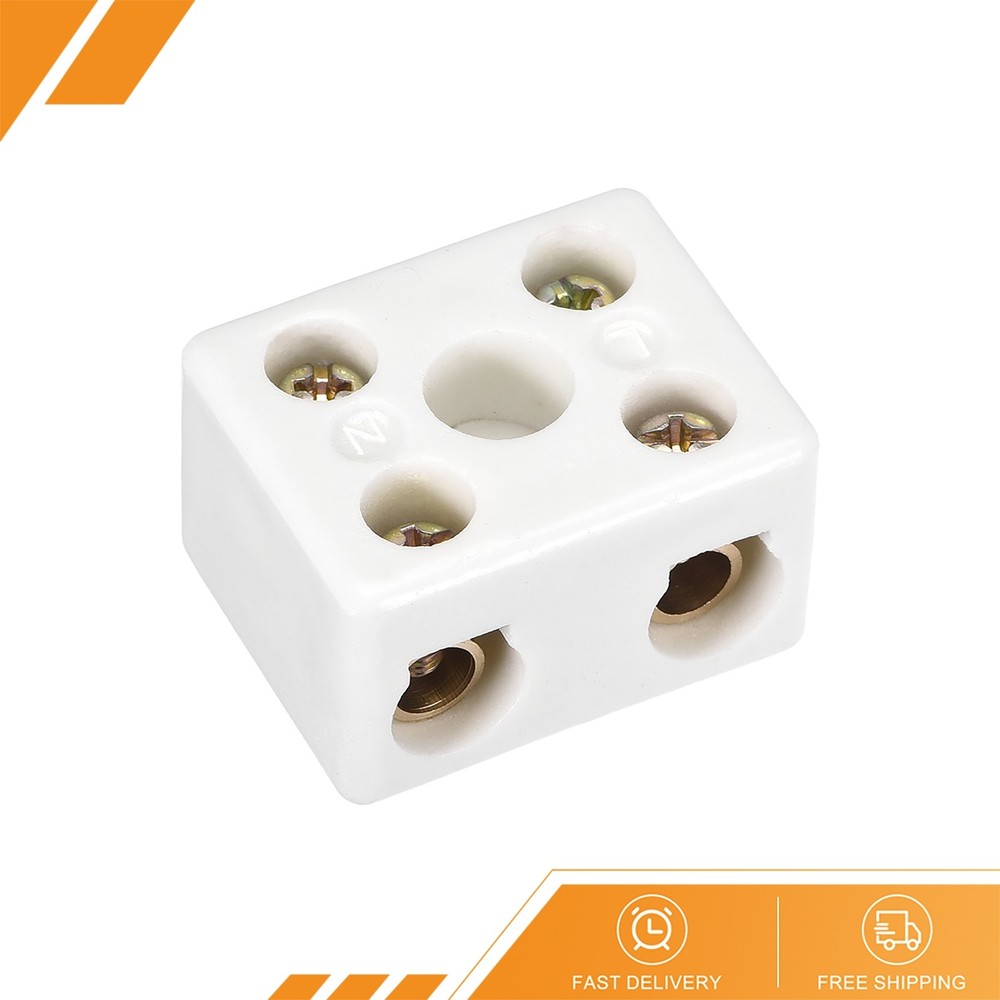

2Way Ceramics Terminal Block High Temp Porcelain Ceramic Connectors 39×31.5x23mm

Specifications

Enclosed Terminals. 2 Way(Pole) for the electrical cables, 4 fine copper connectors ensure a stablility of performance. Size. 39x31.5x23mm in the ceramic block, copper pole fits wire up to 6.5 mm . 7 mm diameter small side hole and 11mm diameter big side hole for mounting ceramics. Wear-resistant, available for 800 degree Celsius maximum operating temperature.Compact shape. Easy and efficient for wiring connections to heaters, precise holes and smooth surface.Application. Ceramic terminal blocks are used in extremely high temperature applications such as hot glue devices, furnaces, heaters, process equipment and machinery. 2 Way Ceramic Terminals BlockBlock Size: 39x31.5x23mm (Length, Width, Height)Diameter of the copper hole: 6.
